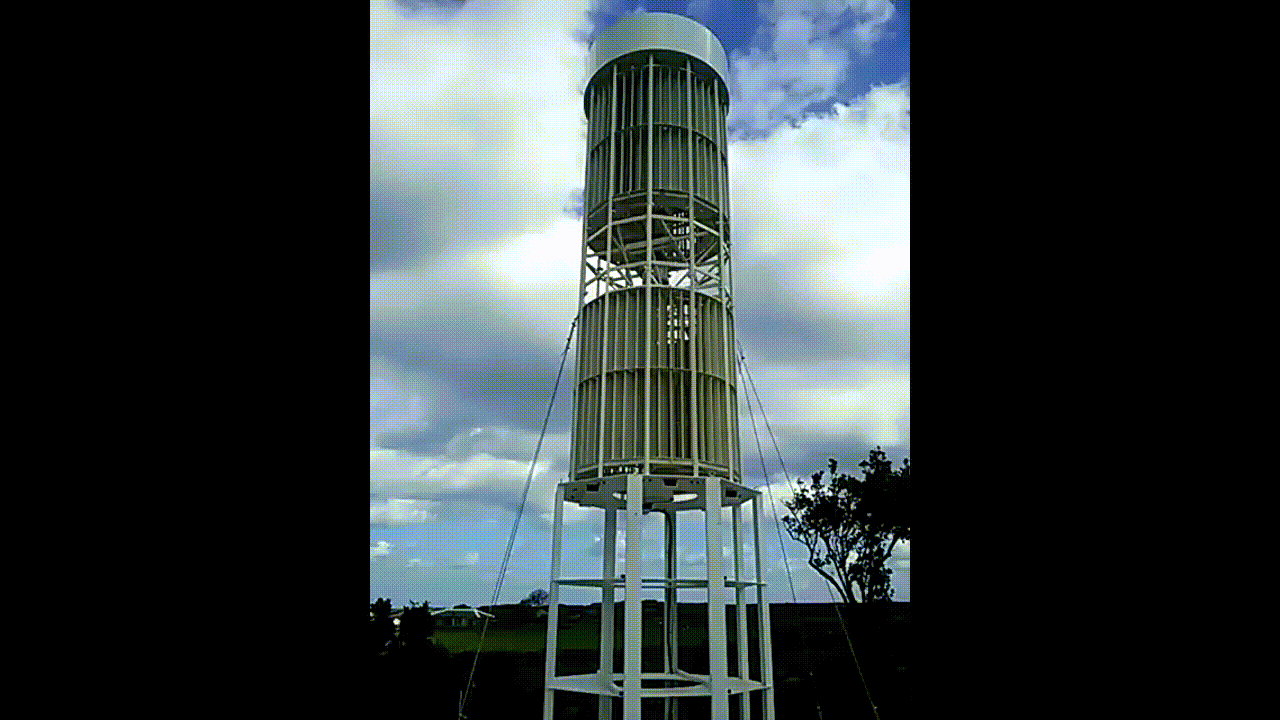

Vertical wind turbine.

Barely rotating under the load. Wind speed 6-7 m/s

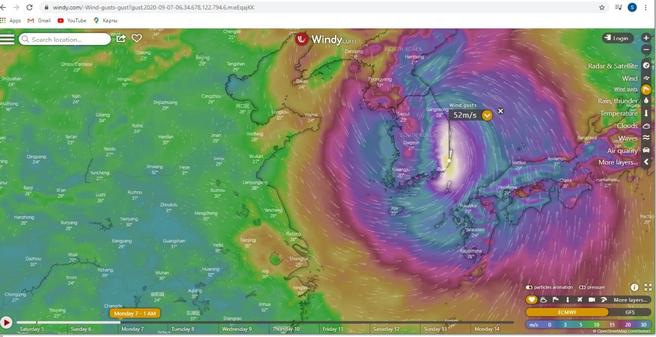

Wind direction and Wind Speed.
What is the value of benefits gives the omnidirectional wind turbine (VAWT) compared with propellers (HAWT) of any kind of your systems?
Answer. 1,2-1,8 times more relative to electricity production and 3-4 times less relatively maintenance cost.

Energy Storage System for a Sustainable Power Supply.

ESS is a smart battery system that has a fast charge using electricity generated from the wind turbine, solar panels, and powers your needs by your demand.​

Adjustable capacity (kWh) for specific inquiries.

     Research and Development

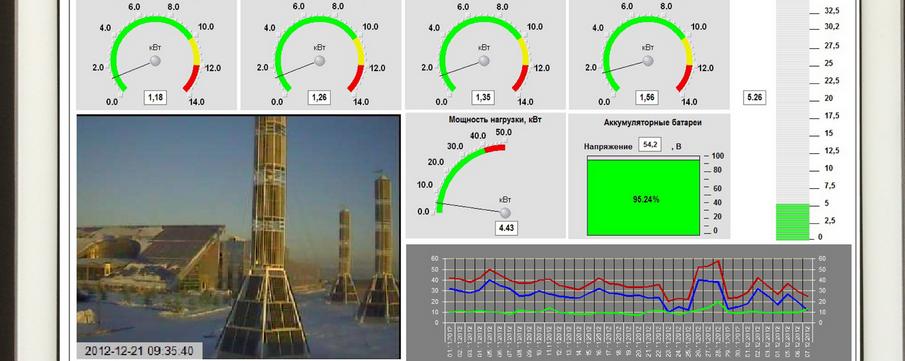

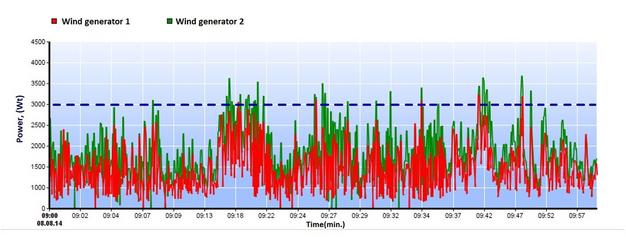

The monitoring system

We designed functional monitoring for remote data collection. Our monitoring system allows you to keep records of data and monitor the object`s key indicators in real-time mode.

​​​© Copyright 2019 Windrotor Bolotov wind power - All Rights Reserved

VRTB turbine WRTB turbine vertical wind turbine

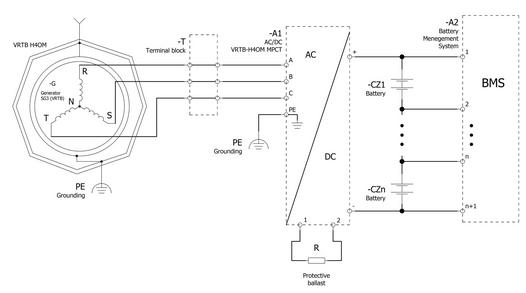

The "WINDROTOR BOLOTOV MPCT" is a highly reliable wind turbine controller - battery charger and its most critical feature is to maximize the harvested energy from the 3-Phase wind turbine into the battery by using the advanced technology of MPCT. The controller allows direct maximum power coefficient tracking for winds of entire range speeds.

The wide range of the input generator’s voltage and output battery voltage is well applied to the wind system to allow the system planner to produce the most of the wind energy. The input voltage range of the "WINDROTOR BOLOTOV MPCT" family may be wired in the range of 0 ~ 220 VAc nominal and the Maximum Automatic Brake Function is 300 Vdc.
"WINDROTOR BOLOTOV MPCT" may not only be used in wind off-grid systems but also wind hybrid systems.


Maximum Wind Turbine Capacity

​Charging 96 Vdc Batteries 8 KW

Charging 48 Vdc Batteries 4 KW

Charging 24 Vdc Batteries 2 KW

Charging 12 Vdc Batteries 1 KW

Multi-blade WRTB turbine with smooth rotation will withstand gusty wind under load.

Lab Tested  ::  Tunnel Tested  ::  Field Tested

​Confused with wind direction

Wind power makes up a large percentage of global renewable energy, and with all the recent technological innovations in wind turbine design, it's no mystery that it's become the fastest-growing form of clean energy. With refined technology, our company has developed new devices that are more efficient and safer for birds. WRTB/VRTB wind turbines can even generate energy while the air is still. Why the efficiency of propeller windmills are low and rarely exceed 17 %.
One of the main answers is changing wind direction that hard to "catch" for the propeller. What solutions are known: tail, peach, stall? Ok, but the same 17%!

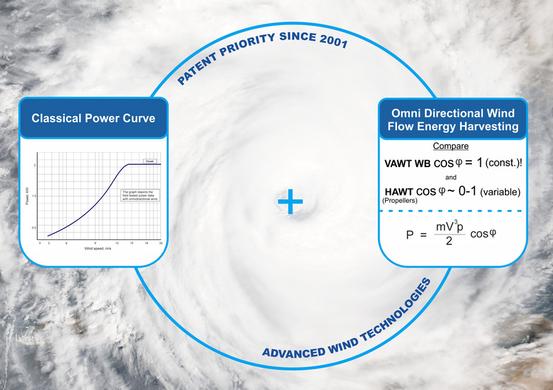

​​WRTB turbine has a similar power curve as conventional wind power turbine, but having a combination of design factor and advanced technologies, the turbine is more efficient in harvesting wind energy.

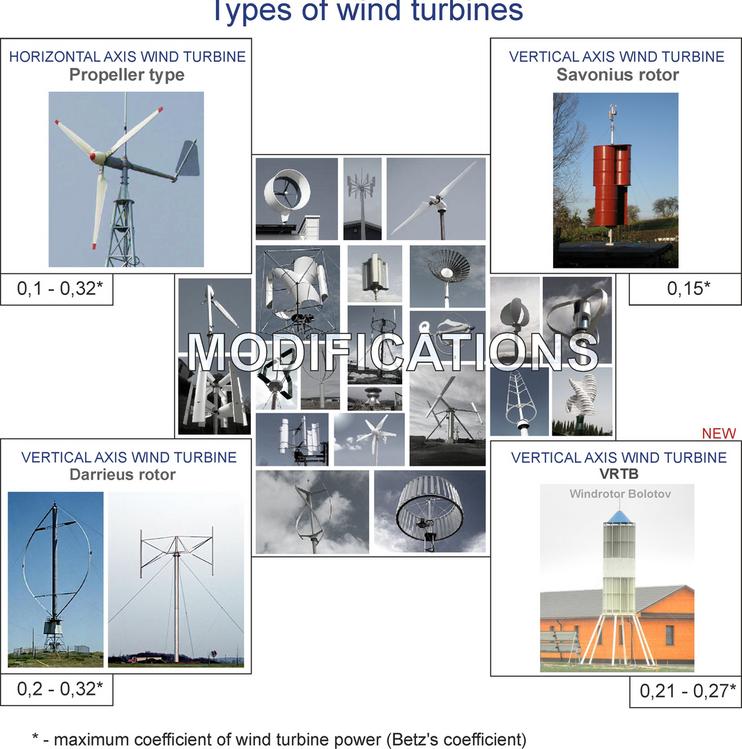

The well-known wind turbine's solutions divided into 2 major groups:
  • Horizontal axis wind turbines (HAWT) - propeller type
  • Vertical axis wind turbines (VAWT) - Savonious, Dareus types, and their modifications.​​​​
The concept of WINDROTOR BOLOTOV was developed based on a thorough study of wind as an energy carrier for its main parameters - speed and direction, as well as the continuous changes in these parameters over time - characterized as a "pulsation", "gusts" and flurry.
Studies show that every estimated kilowatt of power from Windrotor Bolotov in small and medium wind speeds produces more energy than a kilowatt of power from a propeller (HAWT).
Existing wind turbines solutions may divide into 2 major groups:

- Horizontal  Axis Wind Turbines  (HAWT) - propeller windmills

- Vertical Axis Wind Turbines (VAWT) - wind rotor

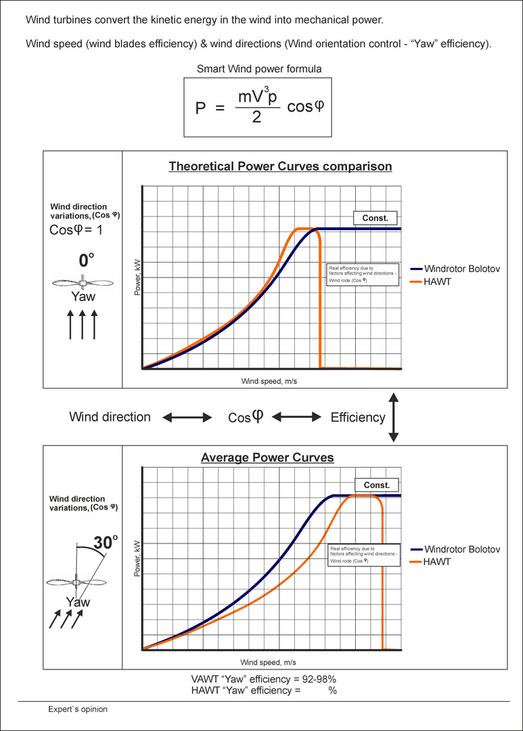

 Historical, only propeller windmills HAWT are widely in use. These solutions have blades (1,2 or 3) of complex shape, an expensive speed reducer, and a  controlling system needed to optimize the orientation of the mill and blades when the direction and speed of wind change.  Medium and small windmill systems are using just primitive yaw devise to “catch the wind”.    According to the Bets law, only 59% of the kinetic energy of the wind can be converted into mechanical energy. However, because of quick changes in wind speed direction and the turbulence effect, the controlling system of propeller windmills is unable to provide optimal settings fast enough. As a result, the kinetic energy of the wind can be converted by HAWT turbine into mechanical power with a ratio of about 10-25 % and this power can be transformed into output electric energy with a ratio of about 50-69 %. (different types of reducers, friction oil, electric scheme, and generator).

Propeller windmills need in wind stream of the stable condition and perpendicular direction flowing to a working profile of blades. This requirement is very crucial for propeller windmills because any changes in wind direction lead to lower efficiency of power extraction out of the wind.  As a result high price (kW-h) of energy output.  ​

The team of the research center has highly skilled workers, professionals with extensive experience in R & D on various types of topics. As the driving force of the entire R & D center analyzes, testing and selection of the most promising solutions, providing the company's leading position among its competitors. Among specialists are Dr. and candidates of sciences. The presence of the research center can not only be a leader in the field of the technical superiority of implemented systems but also to properly plan the economic and financial activities of the company.

The Offered Solution

The offered solution - Windrotor Bolotov is a vertical axis wind turbine (VAWT) with a high conversion ratio. It can be manufactured using standardized assembly modules and parts and also has a low maintenance cost.   WEI Windrotor is designed as a rotor turbine with a vertical axis.  The kinetic energy of the wind can be converted by WEI wind rotors wind turbine into mechanical power with a ratio of about 42 % and this power can be transformed into output electric energy with a ratio of about 92-94%. Using a unique stator-rotor solution that accelerates wind speed, absence of a reducer, and specific electrical generator and scheme ensures these facts, which are very good for the industry. The turbine is modular in the sense that its output can be increased by changing height (adding standard modules with “pads”). The solution can operate in a much wider wind speed range than propeller windmills and its energy effectiveness is also higher (please see diagrams).  Another advantage of the presented solution is that the generator, gearbox, etc. are placed on the ground. Because of the simplicity of construction, the maintenance cost ratio is much lower than for propeller windmills. Comparing of (HAWT) propeller and (VAWT) "WB" type WINDMILLS was based on data obtained through experiments conducted in the same geographic location of Middle Asia having yearly wind speed distribution values in hours as shown in diagrams below.   Paradox: The average of the cube of many different wind speeds will always be greater than the cube of the average speed. ​The reason for this paradox is that the single number representing the average speed ignores the amount of wind above as well as below the average. The ability to capture all range of wind energy from various winds is a "cornerstone" of the "WEI wind rotor" machine (Fig.2 & 3)


Turbine Components (see the wind turbine diagram)

Windrotor Bolotov turbine components include:

1) Blades of the rotor convert the wind energy in rotating the shaft;
2) Blades of the stator, direct and accelerate the airflow to the rotor’s blades;
3) A generator box and a generator are designed for a counter-rotation function of 2 modular blades system (upper and lower module);
4) A “tower”- foundation that supports the wind rotor machine;
5) Electrical enclosure with other equipment, including controller, electrical cables, batteries, and interconnection equipment.

 Infrastructure

​ Installation of large-scale windmills is conditional upon the availability of a goof quality road to transport heavy turbines and cranes, which are used for turbine placement and maintenance. Also needed is a well-developed electrical infrastructure.  The purchase prices for cranes as well as maintenance costs are very high. Often is this consideration is left out of attention at the first-time discussion of the project. Besides, one should add up the price for expensive cables and automated system phone lines to be laid.  If a few small-power windmills are installed, they add up to provide an adequate power supply for the region while the reliability of power generation strengthens for a windmill as a whole. It is a particularly valuable asset in case of unexpected damage sustained by or lightning hitting one of the units.

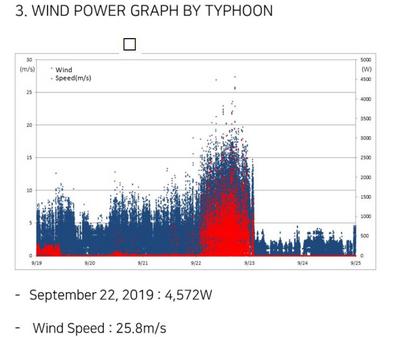

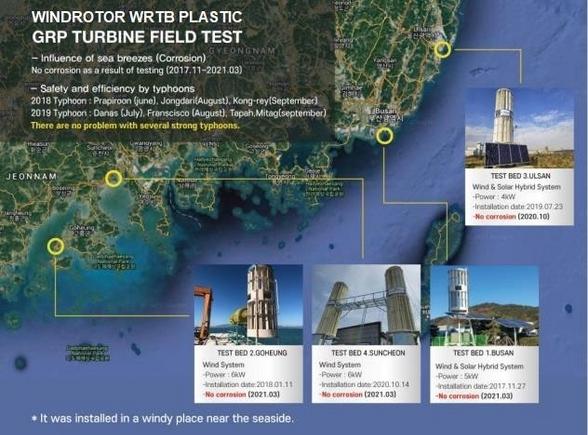

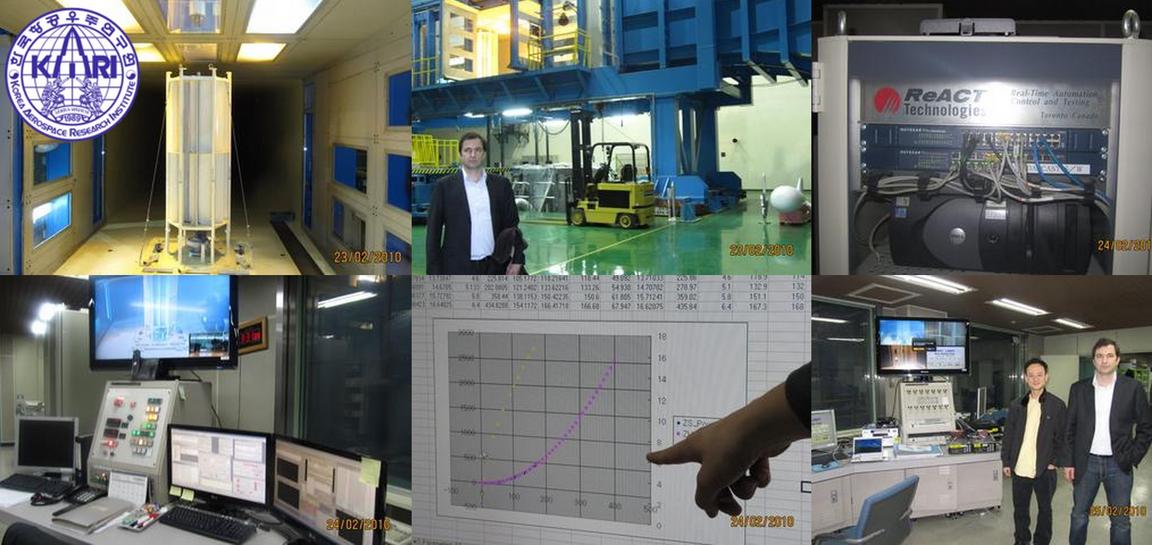

VAWT Windrotor Bolotov and Integrated power systems based on them have been granted the long-term application in a variety of macro-climatic conditions and are most effective. Completed more than 100 projects in the field of alternative energy, using Windrotor Bolotov equipment designed and manufactured of a various lineup. Places of extreme exploitation: Yenisei Bay (annual average wind speed of 10 m / s,-50 C), "Dzungarian Gate" (annual hurricanes up to 47 m / s), the islands of Finland Bay (wind speed of 30 m / s, moist air at sub-zero temperatures). A perspective direction in terms of exploitation and economy are energy complexes with an installed capacity of converters of alternative wind and solar power into electricity: up to 100 kW. Field of application - as a power supply source for telecommunication equipment, lighthouses, hydrometeorological service, technical monitoring points. Below shows the pictures from successful testing at the Korean Aerospace Institute KARI (South Korea).
Team of authors during 17 years hosts a wide variety of fundamental and applied scientific and technical research on the search for prospective wind turbine solutions, the establishment, and improvement of renewable energy power systems.
windrotor bolotov VRTB turbine WRTB turbine ВРТБ турбина

The Vertical-axis wind turbine Windrotor Bolotov is 30 % more effective in wind energy harvesting compare with most other small wind turbines and is characterized by the following indicators:

  • presence of the guide vanes, increase the concentration of wind energy, and optimally guide it to the blades of the turbine rotor;
  • the aerodynamic similarity of modules with different diameters and heights, the ability to manufacture a wide class of turbines capacity;
  • possibility of independent rotation of the turbine rotors and rotation of the rotor and stator of the generator in opposite directions providing the output of the generator at the rated voltage at low wind speeds;

The Windrotor - visually calm and safe source of energy that corresponds to the highest sanitary standards, which has no external moving parts or irritating effects.

At the forefront of advancements in efficiency and sustainability, VRTB is turning proven experience and innovative thinking into exceptional results in  projects around the world.

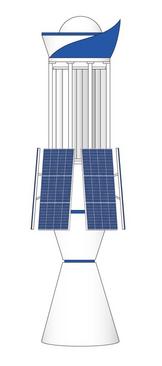

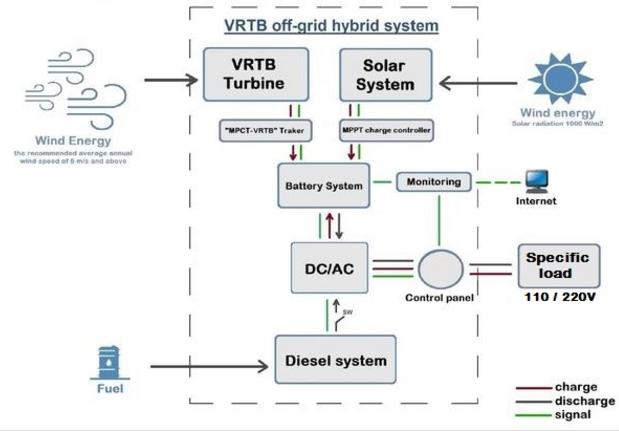

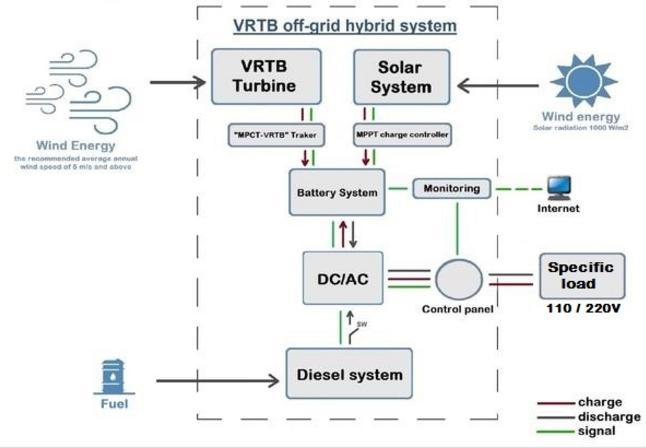

​WRTB/VRTB wind turbine and lithium battery smart, fast charging, system ESS (Energy Storage System)

 "WINDROTOR BOLOTOV" - "WRTB" PROVEN WIND TECHNOLOGY

 Windrotor Bolotov (WRTB) – innovative solution, designed to transform the kinetic energy of wind flow into clean electricity.

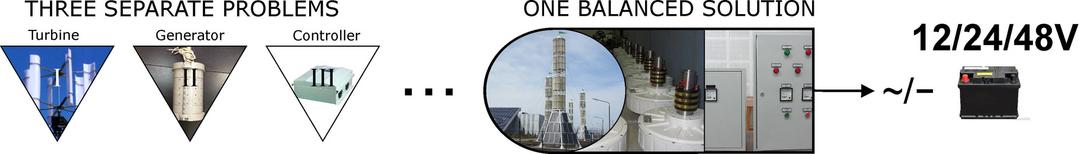

The wind turbine consists of three main components, technically  jointed to each other:

- Wind turbine

  • Electric generator
  • Smart Wind Energy Harvester

​- The HybridWB 5 kWt solution (see the photo Ground installation)

VERTICAL AXIS WIND TURBINE : WINDROTOR BOLOTOV (WRTB/VRTB)

windrotor bolotov VRTB turbine WRTB turbine ВРТБ турбина

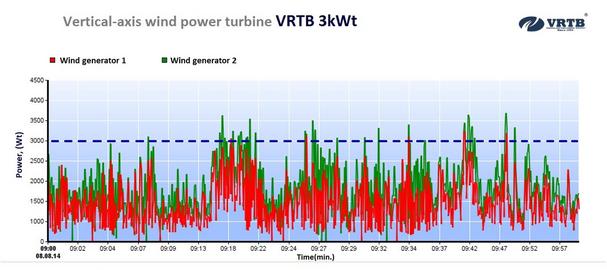

Field-proven  the  Windrotor's  Bolotov  efficiency  is  32 %

S= 6.2 m2. Wind speed 13 m/s. P=3000 Wt

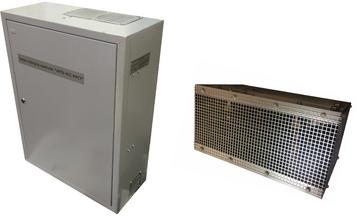

​Smart Wind Energy Harvester "WINDROTOR BOLOTOV MPCT" is designed to charge battery pack

from Vertical-Axis Wind Turbine WRTB

VRTB turbine WRTB turbine windrotor bolotov
windrotor bolotov VRTB turbine WRTB turbine

​WRTB / VRTB TURBINE vertical wind turbine

windrotor Bolotov VRTB turbine WRTB turbine

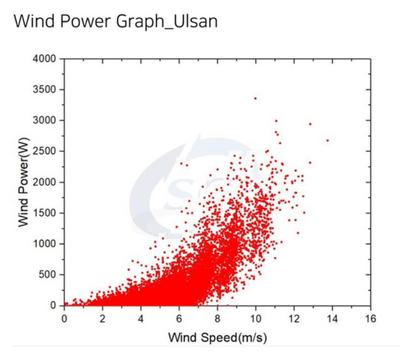

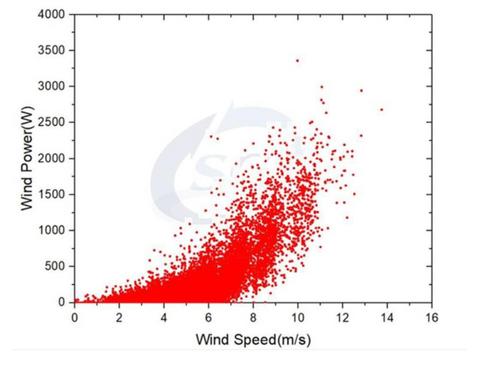

​​ WINDROTOR BOLOTOV POWER CURVE (REAL FIELD TESTING)
